How to splice black fiber optic cables

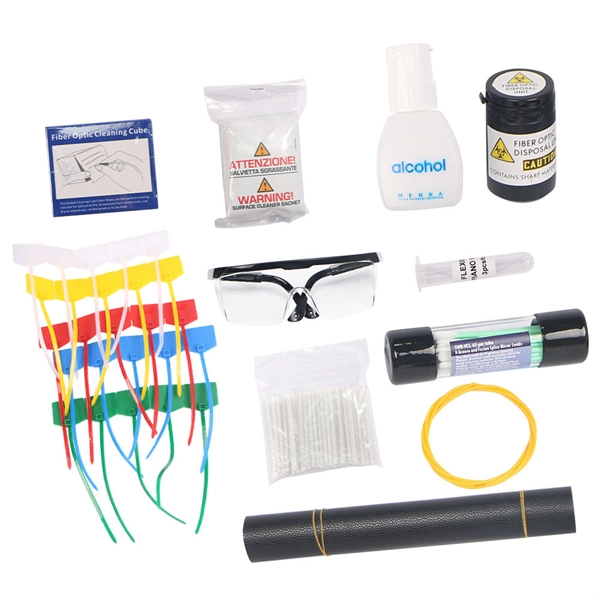

Splicing black fiber optic cables is best done using fusion splicing for a permanent, low-loss connection, following careful preparation, alignment, and protection steps.Tools and Materials NeededFiber optic fusion splicer or mechanical splice kitFiber cleaver for precise cuttingCable stripper and slitterIsopropyl alcohol and lint-free wipes for cleaningProtective splice sleevesMicroscope or inspection tool for fiber endsSafety glasses and glovesStep-by-Step Fusion Splicing ProcessStrip the Cable Jacket: Remove 3–5 cm of the outer black jacket using a cable slitter. Expose the fiber buffer tube carefully, avoiding tension on the fiber .Clean the Fiber: Wipe the exposed fiber with an IPA-soaked swab to remove dust, oils, or debris, which can cause signal loss .Cleave the Fiber: Use a precision cleaver to create a smooth, flat end on each fiber. A poor cleave can lead to high attenuation or splice failure .Inspect the Fiber Ends: Check under a microscope for a mirror-like, flat surface to ensure proper light transmission .Align the Fibers: Place each fiber in the fusion splicer's V-groove. The splicer uses cameras and motors to align the fibers precisely .Fuse the Fibers: Activate the splicer to generate an electric arc that melts the fiber ends together, creating a continuous optical path with minimal loss (typically ~0.1 dB), .Protect the Splice: Slide a protective sleeve over the fused area and heat-shrink it to secure the joint against mechanical stress and environmental factors .Mechanical Splicing (Alternative)Mechanical splicing is faster and temporary, using an alignment device and index-matching gel to hold fibers together .It is suitable for short-term repairs or when fusion splicing equipment is unavailable, but typically has slightly higher signal loss (~0.3 dB), .Best PracticesAlways handle fibers carefully to avoid bending below a 30 mm radius .Keep tools and splicer clean to prevent contamination.Follow manufacturer guidelines for consumables and splice sleeves to ensure long-term reliability .Test the splice with an optical power meter or OTDR to verify low loss and proper signal transmission. By following these steps, black fiber optic cables can be spliced efficiently, ensuring a durable, low-loss connection suitable for telecom, data center, or field installations .
