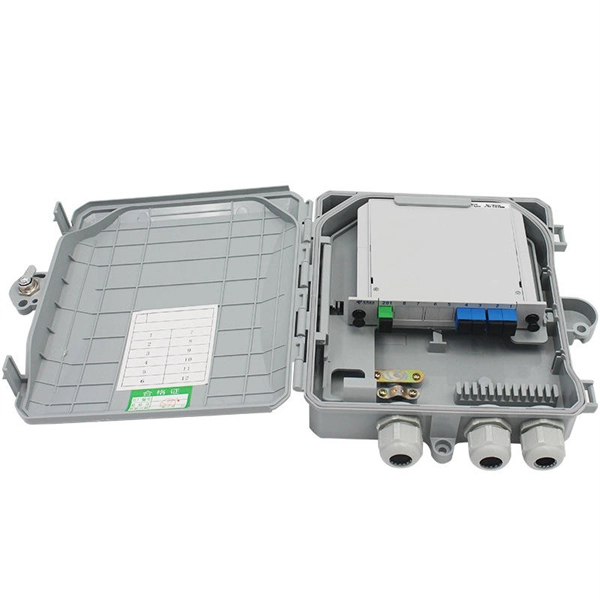

Grounding connection terminal in the distribution box

Yes, distribution boxes have a dedicated grounding terminal, often marked as a PE bar or grounding plate, for safe electrical grounding.Presence of Grounding TerminalDistribution boxes are equipped with a grounding terminal or PE (Protective Earth) bar, which serves as the connection point for grounding wires from the power supply and internal electrical components . This terminal ensures that all conductive parts of the distribution box and connected equipment are safely grounded, reducing the risk of electric shock and equipment damage .Proper Connection MethodLocate the Grounding Terminal: Open the distribution box and identify the position marked with a grounding plate or the letters "PE" .Connect the Power Ground Wire: Use a copper core wire, typically yellow-green insulated, and connect it to the PE bar. Strip the wire appropriately and secure it with a screw to ensure a firm connection .Ground Internal Components: Any electrical components inside the box that require grounding should also be connected to the PE bar using copper wires .Verify Connection: Ensure all connections are tight, clearly marked, and compliant with local electrical standards. The resistance between system parts should meet safety requirements, typically below 0.1 Ohm for industrial applications .Safety and StandardsGrounding wires must be sized according to local regulations (e.g., 10 AWG in the US, 6 mm² elsewhere) and connected to a central grounding point .Proper grounding stabilizes voltage levels, protects equipment from surges, and facilitates fault detection .Regular inspection and maintenance of the grounding connections are recommended to ensure ongoing safety . In summary, distribution boxes include a dedicated grounding terminal, and following proper connection procedures is essential for electrical safety and system reliability .
