Standard for Aerial Optical Cable Span

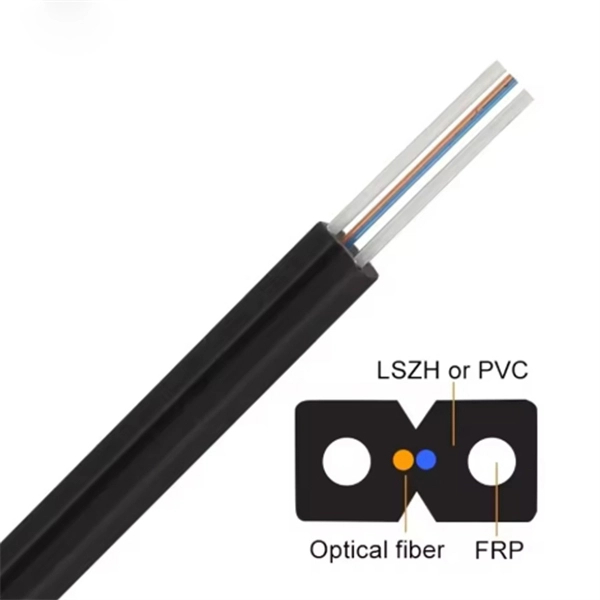

Aerial optical cable spans are determined by cable type, mechanical strength, environmental conditions, and regulatory clearances, with typical ADSS spans around 60 meters and drop cables under 150 feet.General Guidelines for Aerial Optical Cable SpansSpan length is the distance between two support points (poles or towers) for aerial fiber optic cables. The allowable span depends on the cable type, tensile strength, environmental loads (wind, ice), and installation method . Key considerations include:ADSS Cables: All-Dielectric Self-Supporting cables are designed to be installed near power lines without conductive elements. Typical maximum spans are around 60 meters, depending on cable design and environmental conditions . These cables must withstand mechanical loads over their service life, often 25 years, without degradation .Drop Cables (SST-Drop): Standard single-tube drop cables, used for FTTH or FTTB, are short-span cables, generally less than 150 feet (≈45 meters). They are not intended for long-distance aerial runs and are sensitive to installation tension and environmental loading .Distribution Cables: Higher fiber-count distribution cables can have longer spans but require careful design to account for tensile load, sag, and environmental factors .Mechanical and Environmental ConsiderationsTensile Load: Cables must be rated for the maximum tension during installation and service, including wind and ice loading .Sag and Clearance: Proper sag ensures minimum clearance from the ground, roads, and energized conductors. For example, a minimum of 18 feet clearance above traveled roads is commonly required . Clearance from power lines is also specified by utility owners, often around 40 inches from energized conductors .Temperature and UV Resistance: Outdoor cables must maintain mechanical and optical performance under temperature variations and UV exposure .Pole and Anchor Requirements: Poles must be surveyed and prepared according to local regulations, and anchors must be installed or approved for new cable spans .Regulatory and Industry StandardsFOA Guidelines: The Fiber Optic Association provides comprehensive installation standards for aerial fiber, including span planning, pole preparation, and environmental considerations .RUS/NOANET Standards: Construction standards specify minimum separation between drilled holes, strand attachment heights, and bonding requirements for aerial cables .ITU-T G.652D Compliance: Optical fibers in aerial cables typically comply with ITU-T G.652D for single-mode performance .SummaryADSS aerial cables: typical span ≈ 60 meters, designed for long-term mechanical and environmental durability .Drop cables (SST-Drop): typical span < 150 feet, used for last-mile connections .Design factors: include tensile load, sag, environmental conditions, pole spacing, and regulatory clearances .Standards compliance: FOA, RUS/NOANET, and ITU-T specifications guide safe and reliable aerial cable installation .Proper planning, surveying, and adherence to these standards ensure safe, durable, and efficient aerial fiber optic networks.
