How to connect optical transceivers and optical modules

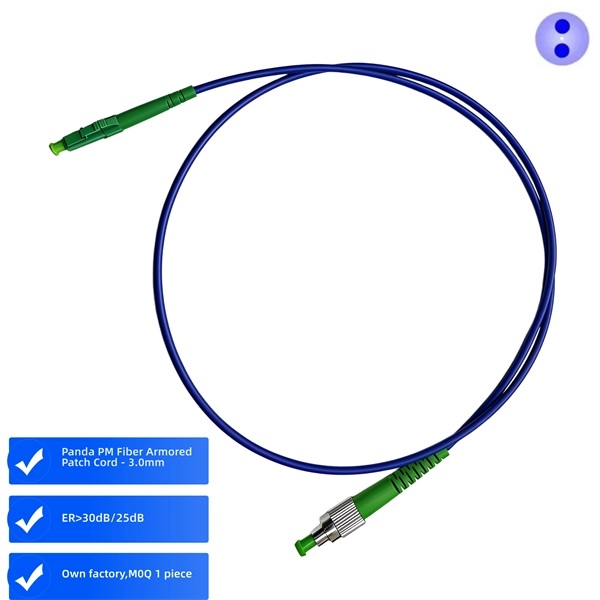

To connect optical transceivers and optical modules, install the transceiver into the device port, remove dust caps, match fiber types and connectors, and use appropriate fiber patch cables while following safety and handling precautions.Step 1: Prepare the Optical TransceiverBefore installation, ensure you are grounded using a wrist strap or antistatic mat to prevent electrostatic discharge (ESD) damage to the module . Check that the transceiver is compatible with your device port (SFP, SFP+, QSFP, or QSFP-DD) and that the module supports the required data rate and transmission distance . Keep the dust caps on until ready to connect to prevent contamination .Step 2: Install the TransceiverInsert the optical transceiver into the corresponding port on your network device. The modules are hot-swappable, so this can be done while the device is powered on, but handle the module carefully to avoid touching the optical interface . Ensure the gold finger pins are properly aligned to maintain correct power-up sequencing and signal integrity .Step 3: Select the Correct Fiber and ConnectorFiber type: Match single-mode (SM) or multi-mode (MM) fiber at both ends .Connector type: Ensure the fiber patch cable matches the transceiver connector (LC, SC, MPO/MTP) .Direct connections: LC-to-LC, SC-to-SC, or MPO-to-MPO fiber jumpers can be used for modules with the same interface .Mixed interfaces: Use appropriate adapters or branch fiber jumpers, e.g., LC-to-SC or MPO-to-LC, if connecting modules with different interfaces .Step 4: Connect the FiberRemove the dust cap from the transceiver and the fiber connector. Insert the fiber patch cable carefully, ensuring proper alignment to avoid insertion loss or signal degradation . Avoid bending or tightly bundling fibers, as this can reduce transmission performance . After disconnection for maintenance, replace the dust cap to protect the optical interface .Step 5: Verify ConnectionOnce connected, check the link status on your network device. Ensure that the modules at both ends are compatible in terms of wavelength, data rate, and fiber type to prevent communication failure . Use vendor-recommended modules when possible to ensure reliability and avoid incompatibility issues .Safety and Handling TipsNever look directly into the optical interface without eye protection .Handle modules by the body, not the optical interface, to prevent contamination or damage .Maintain proper ambient temperature and airflow to avoid overheating . By following these steps, you can safely and effectively connect optical transceivers and modules, ensuring high-quality optical signal transmission and network reliability.
