Plug-in the optical splitter and fiber optic link

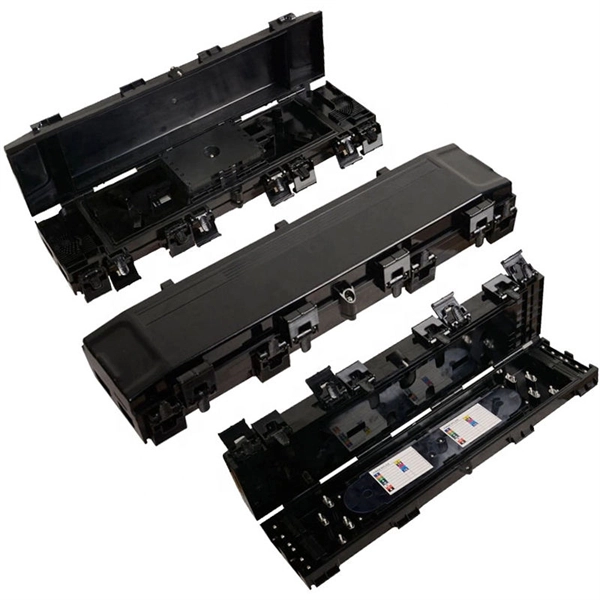

To connect an optical splitter, link the main fiber to the splitter's input port and distribute the outputs to multiple endpoints, ensuring proper placement, split ratio, and minimal signal loss.Understanding Optical SplittersAn optical splitter is a passive device that divides a single incoming optical signal into multiple outputs or combines multiple inputs into one signal. It operates without power, relying on light physics, and is widely used in FTTH (Fiber to the Home) and passive optical networks (PON) to share a single fiber among multiple users ( ). Splitters come in various types, including PLC (Planar Lightwave Circuit) for even distribution and FBT (Fused Biconical Taper) for customizable ratios ( ).Placement of the SplitterThe splitter can be installed indoors or outdoors depending on network design:Indoor locations: central office computer rooms, building wiring closets, or floor distribution boxes.Outdoor locations: optical junction boxes, distribution boxes, or along the backbone network ( ). Primary splitters are typically placed closer to the central office, while secondary splitters are positioned near user distribution points to optimize signal coverage ( ).Connecting the SplitterSelect the appropriate splitter based on the number of endpoints and required split ratio (e.g., 1:4, 1:16, 1:32) ( ).Connect the main fiber line from the Optical Line Terminal (OLT) or central office to the input port of the splitter ( ).Run individual fibers from each output port of the splitter to the Optical Network Units (ONUs) or endpoints ( ).Ensure proper handling: avoid bending fibers beyond their minimum bend radius, and use protective enclosures for outdoor installations ( ).Test signal strength at each output using an optical power meter to verify minimal insertion loss and proper distribution ( ).Key ConsiderationsSplit ratio: Determines how optical power is divided; higher ratios reduce power per output.Insertion loss: Lower insertion loss ensures stronger signals at endpoints.Bidirectional operation: Most splitters support two-way communication, important for services like video calls or internet uplinks ( ).Scalability: Splitters allow future network expansion without additional fiber runs ( ). By following these steps and considerations, an optical splitter can be effectively integrated into a fiber optic link, enabling multiple users or devices to share a single fiber connection efficiently and reliably.
