Installation of distribution boxes and control panels

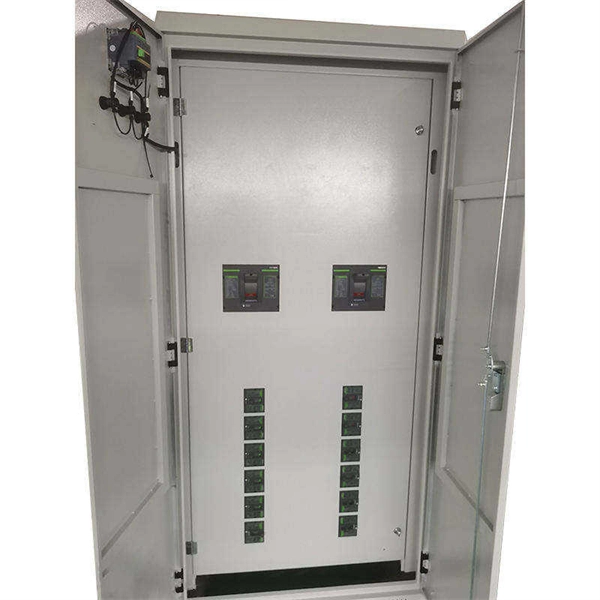

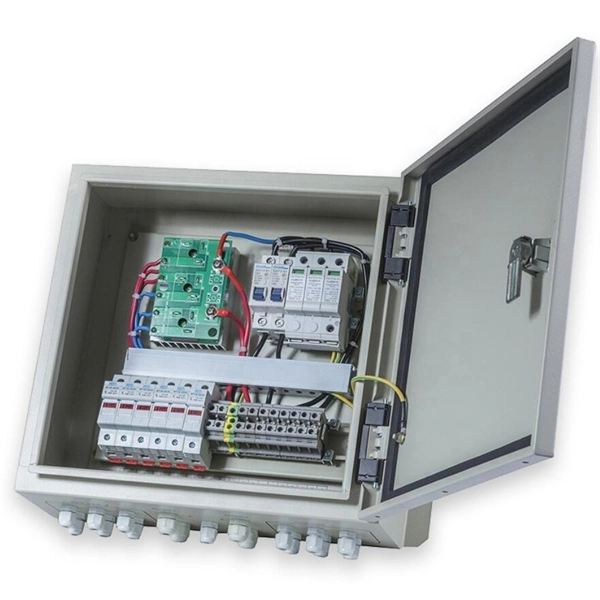

Proper installation of a distribution box ensures safe, organized, and reliable electrical distribution while complying with standards and facilitating maintenance.Pre-Installation PreparationBefore installation, inspect all materials to ensure they match approved specifications and are free from damage. Verify the distribution box size, type, and IP rating according to the site environment—residential, commercial, or industrial—and consider indoor or outdoor placement, ensuring protection against dust, water, and UV exposure (IP66 or NEMA 4X for harsh conditions) . Conduct a site survey to confirm mounting tolerances, clearances, and floor or wall levels.Mounting the Distribution BoxInstall the empty panel box at the designated location using appropriate nuts, bolts, or anchors, ensuring it is level and secure . For larger or industrial panels, use DIN rails, cable ducts, and modular gland plates to organize cables and facilitate future maintenance . Ensure the enclosure is protected from construction debris and plastering during installation.Wiring and Component InstallationPlace switchgear, circuit breakers, fuses, and busbars inside the panel according to manufacturer instructions . Group cables by function—power, control, and instrumentation—and maintain separation to reduce electromagnetic interference and simplify troubleshooting . Tighten all electrical connectors and terminals to manufacturer-specified torque values. Label circuits clearly with laminated schedules, terminal-to-wire lists, and updated wiring diagrams stored inside the panel door .Grounding and SafetyEstablish a single, low-impedance protective earth connecting the enclosure, busbar supports, and panels. For large systems, consider ring conductors or dedicated earthing bars to minimize potential differences during faults . Verify continuity with a ground clamp and record resistance values. Ensure surge protection devices are installed to protect against voltage spikes .Testing and CommissioningBefore energization, perform continuity, insulation resistance (megger), and polarity checks. Insulation resistance should meet manufacturer and IEC/IEEE standards . Conduct a sample or mock-up inspection for the first installation to ensure compliance. After installation, clean the site, remove debris, and prepare for formal inspection by the client or consultant .Maintenance ConsiderationsRoutine inspections should include torque checks on terminals, visual inspection of gland seals, and verification of indicator statuses. High-quality connectors reduce failure points at cable exits and panel interfaces, especially in mission-critical or harsh environments . Document all bonding points and test results for traceability and future troubleshooting. By following these steps, the distribution box control panel will be installed safely, efficiently, and in compliance with electrical standards, ensuring reliable operation and ease of maintenance .
