Fiber Optic Cable Reinforcing Core Bend

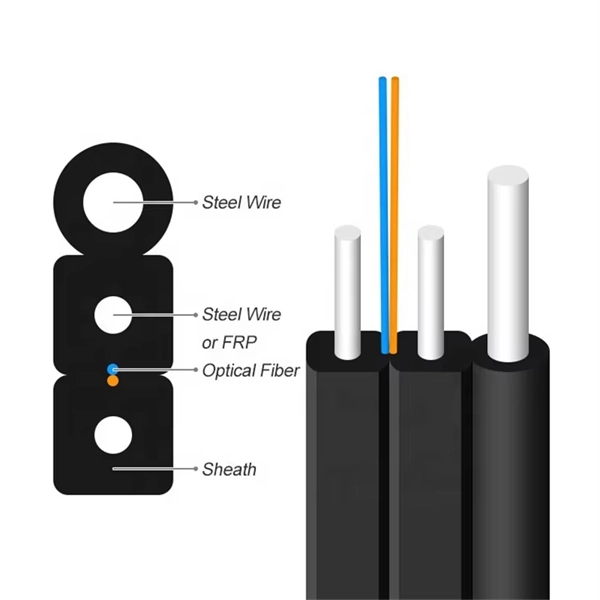

Bending a fiber optic cable's reinforcing core beyond its specified minimum radius can cause signal loss, structural damage, and long-term reliability issues.Understanding the Reinforcing CoreFiber optic cables contain a glass core for light transmission and a reinforcing core or strength members (often aramid yarn, fiberglass rods, or steel wires) that provide mechanical support. The reinforcing core protects the delicate glass fibers from tension, crushing, and bending stresses during installation and service life. When the cable is bent, the reinforcing core absorbs part of the mechanical stress, but excessive bending can exceed its elastic limit, leading to permanent deformation or microcracks in the fiber itself .Minimum Bend RadiusThe bend radius is the smallest radius a cable can be bent without causing unacceptable signal degradation or physical damage. It is measured from the inside of the bend. Typical guidelines are:During installation (under tension): Minimum bend radius is usually 20 times the cable diameter.After installation (static, no tension): Minimum bend radius is typically 10 times the cable diameter . Bend-insensitive fibers (G.657) allow tighter bends, but the reinforcing core and cable jacket still impose physical limits .Effects of Exceeding Bend LimitsBending beyond the recommended radius can cause:Macrobending loss: Light escapes the fiber core at sharp bends, increasing attenuation.Microbending loss: Small-scale pressure points along the fiber cause scattering and signal loss.Mechanical stress on the reinforcing core: Repeated or acute bending can deform strength members, reduce cable elasticity, and eventually lead to fiber breakage .Long-term degradation: Stress corrosion can occur as water molecules react with microcracks in the glass, potentially causing delayed fiber failure over months or years .Best PracticesPlan cable routes to avoid sharp turns and overfilled trays.Use bend radius limiters and organized patch panels to maintain proper curvature.Follow manufacturer specifications for both fiber type and cable construction.Post-installation testing (insertion loss, OTDR) ensures the cable has not been overstressed .Consider IBP or bend-optimized fibers for high-density or frequently reconfigured installations, as they tolerate tighter bends without significant signal loss . Maintaining proper bend radius and respecting the mechanical limits of the reinforcing core ensures long-term optical performance, structural integrity, and network reliability.
