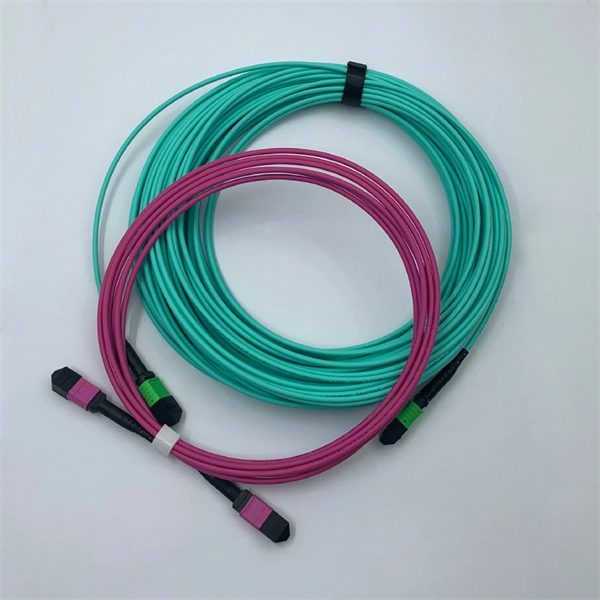

What equipment is used to test multimode optical cables

Multimode optical cables can be tested using visual inspection, power meter and light source measurements, OTDR, and visual fault locators to ensure continuity, signal quality, and fault detection.1. Visual Continuity CheckA simple first step is to verify continuity using a visible light source or flashlight. Shine an LED flashlight into one end of the fiber while a second person observes the opposite end. If light emerges, the fiber is continuous; if not, there may be a break or fault in the cable . This method is quick and useful for newly installed cables or basic troubleshooting.2. Power Meter and Light Source TestingFor more accurate measurements, use a light source and power meter (LSPM), also called the one-jumper method. Connect the light source to one end of the fiber and the power meter to the other. This measures end-to-end attenuation, helping identify signal loss over the cable length. Testing should be performed at the operational wavelength of the network, typically 850 nm for multimode fibers . Document the results to establish a performance baseline.3. Optical Time-Domain Reflectometer (OTDR)An OTDR sends pulses of light through the fiber and analyzes reflections to detect faults, bends, splices, and overall fiber length. OTDR testing is ideal for complex networks or long cable runs, providing detailed diagnostics that cannot be obtained with simple continuity checks . Ensure the OTDR wavelength matches the fiber type for accurate results.4. Visual Fault Locator (VFL)A VFL uses a visible red laser to pinpoint breaks, bends, or faults along the fiber. The light appears at the fault location, making it easy to identify problem areas . This method is particularly useful for troubleshooting localized issues.5. Consider Modal EffectsWhen testing multimode fibers, modal distribution affects measurement accuracy. Higher-order modes travel longer paths and experience more attenuation, which can influence test results, especially in short versus long fibers. Using proper mode-conditioning techniques ensures reproducible and accurate measurements .6. Industry StandardsFollow TIA/EIA and IEC standards for fiber testing to ensure consistency and reliability. Tier 1 testing typically includes link attenuation, length, and polarity checks, while Tier 2 (optional) may involve OTDR traces for splice and connector loss documentation .SummaryTo effectively test multimode optical cables:Start with a visual continuity check.Measure attenuation with a power meter and light source.Use OTDR for detailed diagnostics.Employ a VFL to locate faults.Consider modal effects for accurate results.Follow industry standards for documentation and verification. Regular testing ensures network reliability, minimizes downtime, and helps maintain optimal performance.
