Fiber Optic Cable Dual Connector Panel

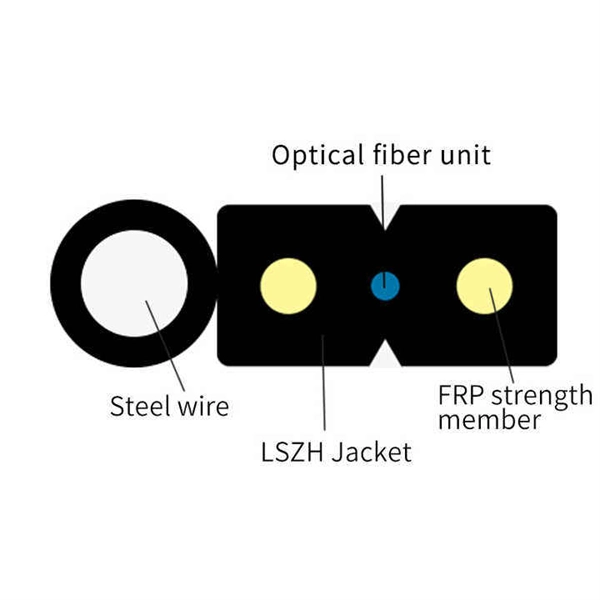

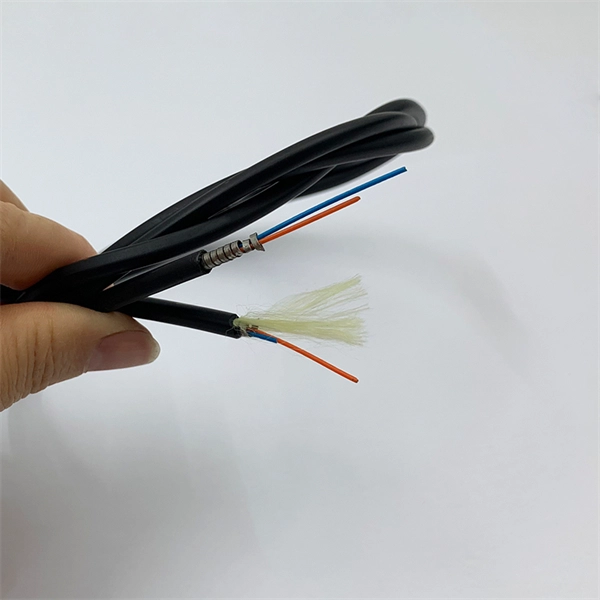

Fiber optic cables are connected to a double-sided panel by preparing the fibers, using compatible connectors, ensuring correct polarity, and plugging them into the panel's duplex adapters or splice trays.Step 1: Identify Cable Type and ConnectorsDetermine whether your fiber is single-mode or multi-mode, as this affects connector choice and performance . Common connectors include LC, SC, ST, and FC, with LC and SC being most common for duplex panels . For double-sided panels, duplex connectors (two fibers in one connector) are typically used to maintain full-duplex communication .Step 2: Prepare the FiberInspect the fiber for damage, kinks, or bends .Strip the outer jacket carefully using fiber strippers.Clean the fiber with anhydrous alcohol to remove dust or debris .Cleaving: Cut the fiber to the precise length using a fiber cleaver to ensure a smooth end face .Step 3: Terminate the FiberConnector installation: Insert the fiber into the connector ferrule. Depending on the connector type, secure it using latch, threaded, or bayonet mechanisms .Glue or epoxy may be used for permanent terminations, followed by curing and polishing .For plug-and-play solutions, pre-terminated cables with LC/PC or SC/PC connectors can be directly plugged into the panel .Step 4: Ensure Correct PolarityFor duplex connections, fiber 1 should connect to the transmitter and fiber 2 to the receiver to maintain proper signal flow .If the permanent cable plant is crossed, use straight duplex patch cords; otherwise, a crossed patch cord or simplex connections may be required .Step 5: Connect to the PanelInsert the connectors into the duplex adapters on both sides of the panel.Secure the cable using cable management strips or trays to maintain bend radius and prevent stress on the fibers .Label each connection to simplify troubleshooting and future maintenance.Step 6: Test the ConnectionUse an optical power meter or OTDR to verify signal integrity and ensure minimal loss .Check for proper connectivity and confirm that transmitters and receivers are correctly paired. By following these steps, you can achieve a reliable, low-loss connection on a double-sided fiber optic panel, ensuring optimal network performance and easy maintenance.
