Fiber Optic Terminal Box Fiber Connection Method

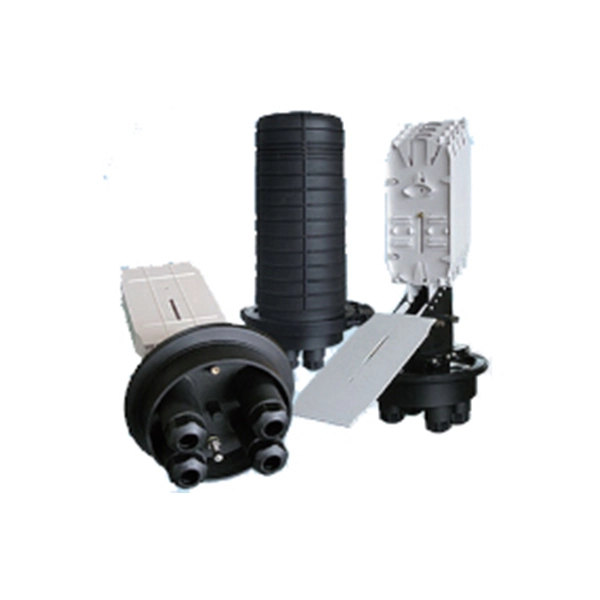

Fiber optic cables are connected in terminal boxes using fusion splicing, mechanical splicing, or patching, with the terminal box providing protection, organization, and distribution for the fibers.Overview of Fiber Optic Terminal BoxesA fiber optic terminal box (FTB), also known as an optical termination box, is a compact enclosure designed to organize, terminate, splice, and protect fiber optic cables. It serves as a junction point between incoming feeder cables and outgoing pigtails or patch cords, ensuring secure and efficient signal distribution in FTTH networks, data centers, or campus backbones . Terminal boxes can be wall-mounted, pole-mounted, or rack-mounted, and are made from materials like composite plastics or sheet metal, often with weatherproofing for outdoor use .Types of Terminal BoxesStraight-through Terminal Box: Features a single external hole for the incoming fiber, suitable for simple point-to-point connections .Branched-type Terminal Box: Has multiple entry points for fibers, ideal for networks requiring distribution to multiple endpoints .Indoor vs Outdoor: Indoor boxes prioritize density, clean cable management, and dust protection, while outdoor boxes focus on ingress protection, UV resistance, and mechanical durability .Connection Methods1. Fusion SplicingFusion splicing is the most common method for permanent fiber connections. It involves aligning two fiber ends and fusing them using an electric arc. This method provides low insertion loss, high reliability, and long-term stability. Fusion splicing is typically performed inside the terminal box using dedicated splice trays that protect the spliced fibers .2. Mechanical SplicingMechanical splicing uses a precision alignment device to hold fiber ends together, often with a gel or adhesive to reduce signal loss. This method is faster than fusion splicing and is useful for temporary connections or field repairs, though it generally has slightly higher insertion loss .3. Connectorized PatchingPatch cords or pigtails are pre-terminated fibers with connectors (LC, SC, or ST) that plug into adapters inside the terminal box. This method allows easy reconfiguration, testing, and maintenance without disturbing the main fiber line . Terminal boxes often include modular adapter plates to accommodate multiple connector types and future expansion.Cable Management and ProtectionTerminal boxes include storage areas, cable fixation points, and bend radius management to prevent fiber damage. Proper routing ensures fibers are not bent beyond their minimum bend radius, reducing attenuation and signal loss . Outdoor boxes are typically dust-proof, watertight, and lockable, while indoor boxes focus on accessibility and organized patching .SummaryFiber optic terminal boxes provide a centralized, protected interface for connecting, splicing, and distributing fibers. Connection methods include fusion splicing for permanent joints, mechanical splicing for temporary or field connections, and patching with pre-terminated connectors for flexibility. Choosing the right terminal box and connection method depends on the network environment, fiber type, and expected scalability .
