Design and Installation of Steel Structure Distribution Boxes

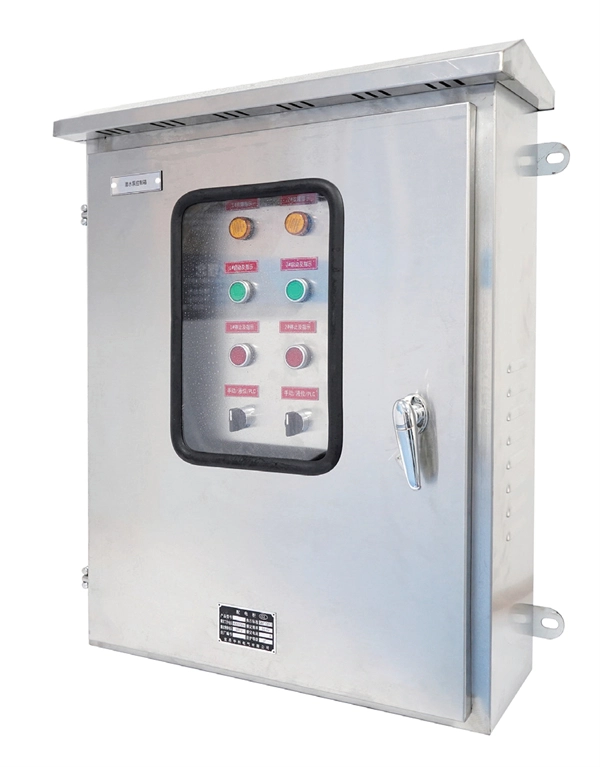

Steel enclosures provide a robust, durable, and safe solution for mounting distribution boxes in residential, commercial, and industrial settings.Overview of Steel Distribution BoxesSteel distribution boxes, also known as steel enclosures or panelboards, are designed to house circuit breakers, busbars, terminal blocks, and wiring while protecting them from mechanical impact, dust, and moisture ( ). They are commonly used in industrial and commercial environments due to their high strength, durability, and resistance to harsh conditions. Steel enclosures are available in flush-mounted or surface-mounted versions, allowing flexible installation depending on space and accessibility ( ).Key FeaturesMaterial Strength: Steel provides superior mechanical protection compared to plastic, making it ideal for high-traffic or industrial areas ( ).Protection Ratings: Look for enclosures with appropriate IP or NEMA ratings to ensure water and dust resistance, especially for outdoor or humid environments ( ).Impact Resistance: Many steel boxes offer IK09 protection, which safeguards against mechanical impacts ( ).Design and Accessibility: Modern steel enclosures often include DIN rails, cable entry points, and modular layouts for easy wiring, maintenance, and future expansion ( ).Installation GuidelinesLocation and Height: Install the box in a dry, accessible area with good ventilation. Residential boxes are typically mounted around 1.5 meters above the ground, while industrial boxes may vary depending on surrounding equipment ( ).Mounting Surface: Ensure the steel structure is firmly anchored using expansion bolts or screws. The box should be stable, level, and free from inclination ( ).Clearance and Ventilation: Leave sufficient space around the enclosure for heat dissipation and maintenance access ( ).Electrical Connections: Follow proper wiring practices: secure grounding, correct wire gauge, neat cable management, and installation of circuit breakers, fuses, and surge protectors ( ).Safety Checks: After installation, perform visual inspections and insulation resistance tests to ensure safe operation before powering the system ( ).Maintenance and UpgradesSteel distribution boxes are durable but require regular inspections to check for corrosion, loose connections, or damage. Modular designs allow for easy upgrades or expansion without replacing the entire enclosure ( ).ConclusionUsing a steel structure for distribution boxes ensures mechanical strength, long-term durability, and safety. Proper selection based on environment, load capacity, and protection rating, combined with careful installation and maintenance, guarantees reliable operation of electrical systems in any setting ( ).
