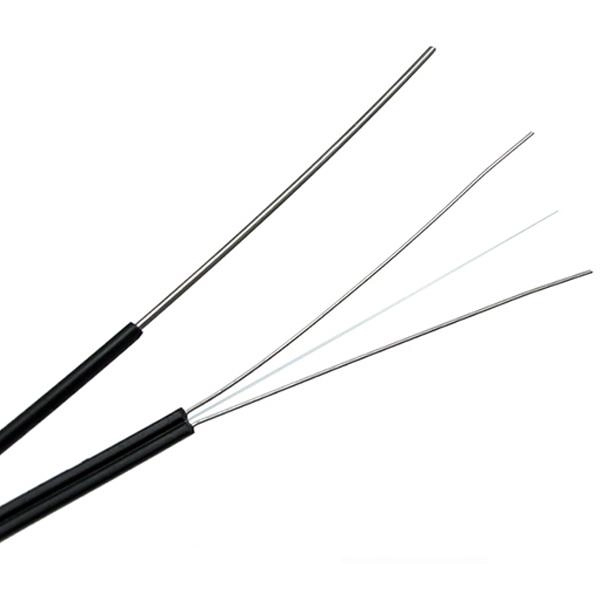

Methods for Locating Breakpoints in Drop Fiber Optic Cables

Breakpoints in drop fiber optic cables can be located using OTDRs, Visual Fault Locators, power meters, and physical inspection, each suited to different cable lengths and fault types.Key Techniques1. Optical Time-Domain Reflectometer (OTDR) An OTDR is the most effective tool for locating breaks in long-distance fiber cables. It sends light pulses through the fiber and measures backscattered and reflected signals to pinpoint the exact location of a fault. OTDRs can detect breaks, splices, connectors, and bends, providing distance and loss information with high accuracy, often within ±1 meter . For short links, care must be taken to account for dead zones, which can obscure faults near the launch point . 2. Visual Fault Locator (VFL) A VFL emits visible red laser light (typically 650 nm) through the fiber. If there is a break, the light escapes at the fault point, making it visible. VFLs are ideal for short runs, indoor cables, or drop fibers under 2 km, and are often used in conjunction with OTDRs for precise localization . 3. Optical Power Meter and Light Source This method measures signal strength along the fiber. A significant drop in power indicates a potential break or high-loss point. Power meters are useful for confirming suspected faults and for quick diagnostics in accessible cable sections . 4. Physical Inspection For accessible cables, visual inspection can reveal obvious damage such as cuts, kinks, or crushed sections. This is particularly effective for aerial or exposed drop cables. Inspection microscopes can also detect micro-fractures at fiber ends . 5. Continuity Testing and Breakout Boxes Continuity testing ensures the fiber is properly connected and can help isolate the faulty fiber in multi-fiber cables. Breakout boxes allow selective testing of individual fibers, narrowing down the search area for faults . 6. Specialized TechniquesCold Clamp Method: Used on jelly-filled cables, a Cold Clamp provides a local optical reference for OTDR measurements, allowing long-distance fault location with meter-level accuracy .Clip-on Identifiers: These detect the presence of traffic or test tones without disturbing active systems, aiding in fault localization .Best PracticesChoose the method based on cable length, accessibility, and type of fault.Combine OTDR and VFL for both long-range detection and precise short-range localization.Maintain consistent OTDR settings (pulse width, dB/division) to ensure accurate measurements .Document fault locations with GPS or route markers for efficient repair planning. By integrating these methods, technicians can efficiently locate and repair breakpoints in drop fiber optic cables, minimizing downtime and ensuring network reliability .
