Several optical fiber modules are connected together

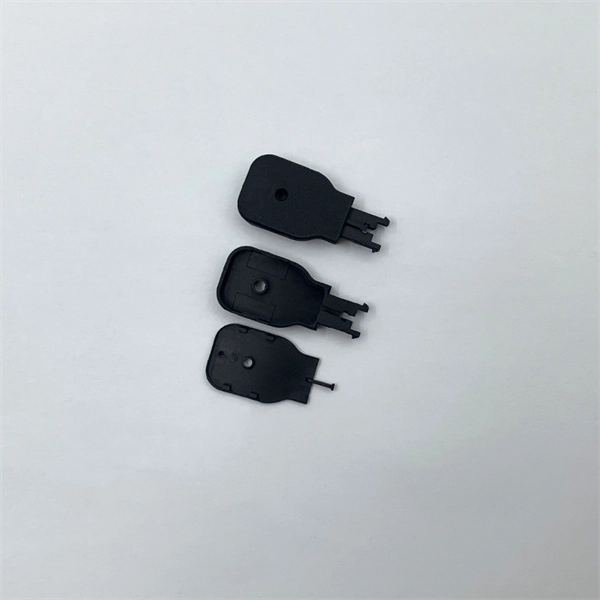

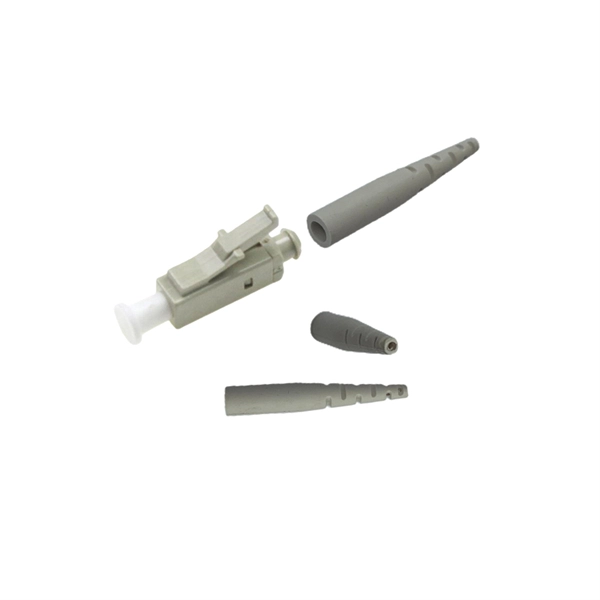

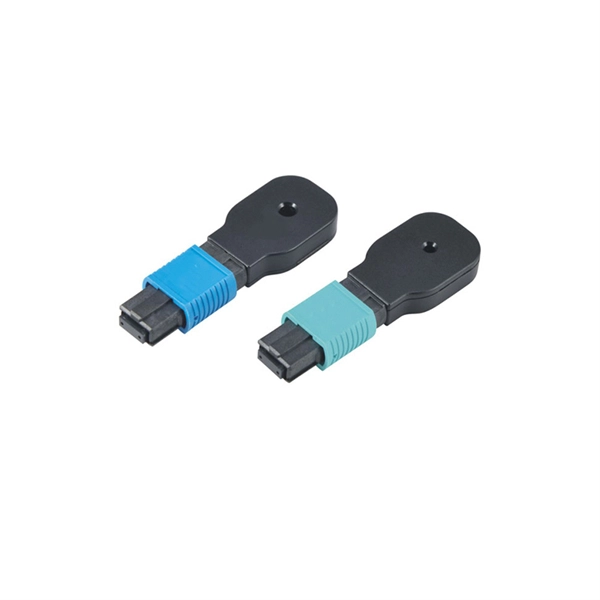

Optical modules connect through their transmitters and receivers, converting electrical signals to optical signals and back, with power and interface compatibility ensuring proper communication.Signal Conversion and TransmissionOptical modules serve as the bridge between electrical devices and optical fibers. Each module contains a transmitter (TOSA) that converts electrical signals into optical signals and a receiver (ROSA) that converts incoming optical signals back into electrical signals . When two modules are connected via an optical fiber, the transmit optical power of one module must fall within the receiver sensitivity range of the other module to ensure accurate signal reception and maintain a low bit error rate (BER), .Physical ConnectionsModules are connected using optical interfaces, such as LC or MPO connectors, which align the fiber cores for efficient light transmission . Protective components like dust plugs prevent contamination, while latches and springs secure the module in the device port, ensuring stable mechanical and optical alignment . The housing of the module protects internal components and provides standardized form factors (e.g., SFP, QSFP) for compatibility across devices .Power and Control InteractionsEach module receives electrical power through its connector interface, which also carries control signals to manage the transmitter and receiver circuits . Advanced modules include automatic power control (APC) circuits to maintain consistent optical output and digital diagnostic monitoring (DDM) to track parameters like transmitted and received power, temperature, and laser bias current . These features ensure that connected modules operate within compatible ranges, preventing signal loss or damage.Inter-Module CommunicationThe connection between modules is not just physical but also functional. The transmit power, receiver sensitivity, and wavelength alignment must match between modules to maintain signal integrity . In practice, this means that the output of one module directly determines the acceptable input range of the connected module, creating a tightly coupled system where each module's performance affects the other.SummaryIn optical fiber systems, modules are interconnected through optical fibers and standardized interfaces, with their transmitters and receivers performing electro-optical conversions. Proper power levels, wavelength alignment, and mechanical connections are critical to ensure reliable communication. Advanced monitoring and control circuits further enhance compatibility and maintain signal quality across the network .
