How to Choose Patch Cords and Fiber Optic Cables

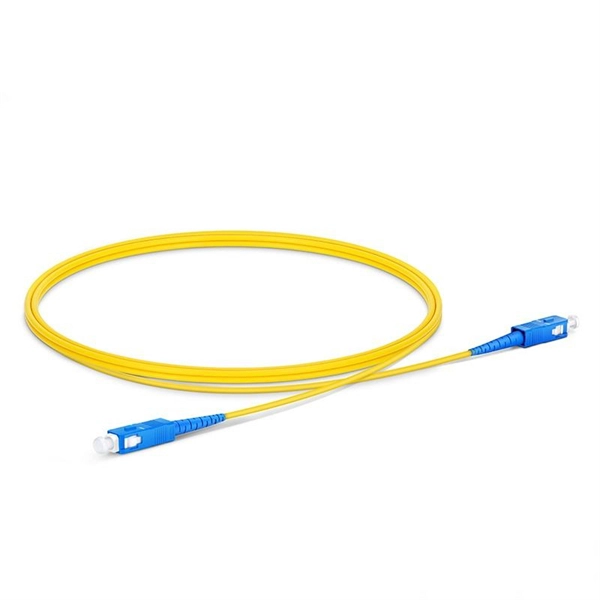

Choosing the right fiber optic patch cord depends on fiber type, connector type, distance, bandwidth, and deployment environment.Fiber TypeSingle-mode (SMF, OS2): Features a narrow 9/125 µm core, allowing light to travel in a single path. Ideal for long-distance transmission (up to 120 km or more) with low attenuation and high bandwidth potential. Commonly used in campus networks, telecom backbones, and long-haul links . Multimode (MMF, OM1/OM2/OM3/OM4/OM5): Has a larger core supporting multiple light paths, suitable for short-distance applications like data centers and LANs. OM3, OM4, and OM5 support higher bandwidth and longer distances, with OM5 optimized for wideband applications . Color Coding: OS2 – yellow, OM1/OM2 – orange, OM3/OM4 – aqua, OM5 – lime green .Connector TypesLC: Small form factor, high-density, preferred in modern data centers.SC: Larger, easy to handle, common in FTTH and early 1G systems.FC/ST: Bayonet or twist-lock connectors, used in legacy or industrial systems.MPO/MTP: High-density parallel transmission for 100G/400G modules . Simplex vs Duplex: Simplex carries one fiber (one-way), duplex carries two fibers (two-way), with duplex being standard for Ethernet and PON links .Key Selection ConsiderationsDistance and Bandwidth: Match fiber type to required link distance and data rate. Single-mode for long-haul, multimode for short-haul high-speed links .Wavelength Compatibility: Ensure fiber matches transceiver wavelength (e.g., 850 nm for multimode, 1310/1550 nm for single-mode), .Jacket Material: Choose based on environment: PVC for general indoor, LSZH for low-smoke, OFNR/OFNP for riser or plenum, armored or waterproof for outdoor/FTTA .Quality and Loss: Prioritize low-loss, high-quality fibers to maintain a controllable bit error rate (BER), .Future Scalability: Opt for higher-spec fibers (e.g., OM4 over OM3) to support future network upgrades .Vendor Compatibility: Use trusted brands or verified compatible cables to prevent interoperability issues .Deployment EnvironmentData Centers: High-density LC or MPO/MTP patch cords, OM4/OM5 multimode for short distances.Campus/Long-Haul: OS2 single-mode patch cords for distances exceeding 10 km.FTTH/Telecom: SC or LC connectors, G.657 bend-insensitive fibers for tight spaces .SummarySelecting the right fiber optic patch cord requires balancing fiber type, connector type, distance, bandwidth, and environmental factors. Proper selection ensures low insertion loss, minimal back reflection, and stable signal transmission, while supporting current and future network requirements .
