Methods for Proper Layout of Network Cabinets

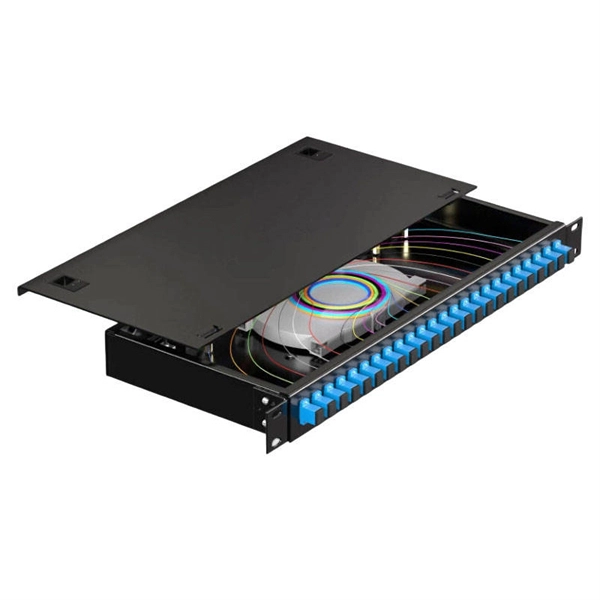

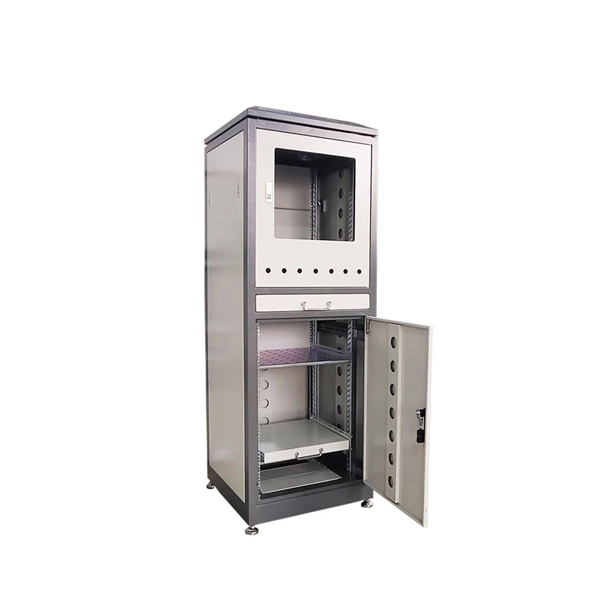

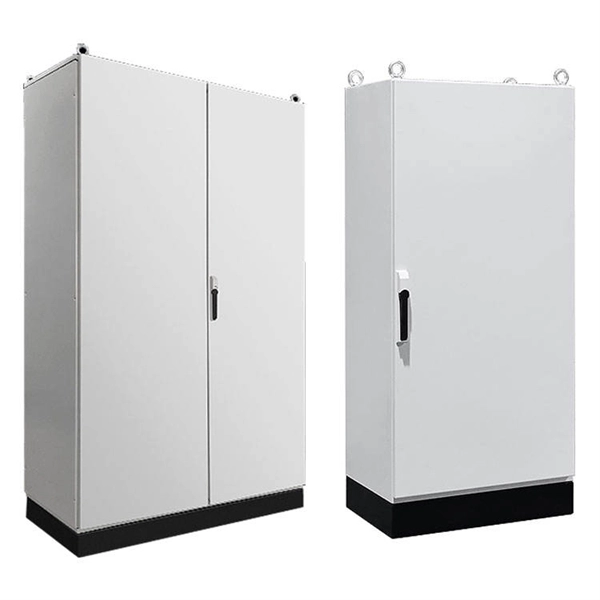

Network cabinets should be arranged for accessibility, airflow, and organized equipment placement, with heavier devices at the bottom and proper cable management throughout.Cabinet PlacementChoose the right location: Place cabinets in a central, accessible area with adequate ventilation, away from heat sources, moisture, or direct sunlight, whether in a data center, office, or home environment .Spacing: Maintain at least 1 meter in front of cabinets for access; for deeper equipment, 1.3 meters is recommended .Alignment: Arrange cabinets with similar equipment in rows for a neat, organized appearance and easier management .Raised floors and walls: Position floor-mounted cabinets close to walls for stability and safety .Hot and cold aisle management: Use blanking panels to prevent cold air from mixing with hot air, improving cooling efficiency .Equipment ArrangementHeavier devices at the bottom: Servers and large switches should be mounted lower to maintain stability .Patch panels and networking gear: Install patch panels above heavier equipment for organized cabling and easier access .Power distribution units (PDUs): Mount PDUs vertically at the rear to provide safe and reliable power delivery .Future-proofing: Leave space for expansion and avoid buying cabinets that are too small .Cable ManagementLabeling: Clearly label all cables to simplify maintenance and troubleshooting .Cable racks and reels: Use 1U or 1SU cable racks for structured routing; optical fibers may require winding reels .Color coding: Use different colored cables for switches or network segments to reduce confusion .Separation of power and data cables: Keep them apart to reduce interference and improve safety .Short, consistent patch cables: Minimize clutter and maintain airflow .Airflow and CoolingMaintain airflow paths: Avoid blocking vents and ensure cold air reaches the front of equipment while hot air exits the rear .Use blanking panels: Fill empty rack spaces to prevent hot air recirculation .Monitor temperature: Consider intelligent PDUs or environmental sensors to track heat and prevent overheating .Security and MaintenanceLockable cabinets: Protect critical equipment from unauthorized access .Accessibility: Ensure all equipment is reachable for maintenance without disrupting other devices .Regular audits: Periodically check cable organization, airflow, and equipment stability to maintain efficiency . By following these best practices, network cabinets will be organized, secure, and efficient, reducing downtime, simplifying maintenance, and supporting future network growth.
