Fiber Optic Terminal Box Technology

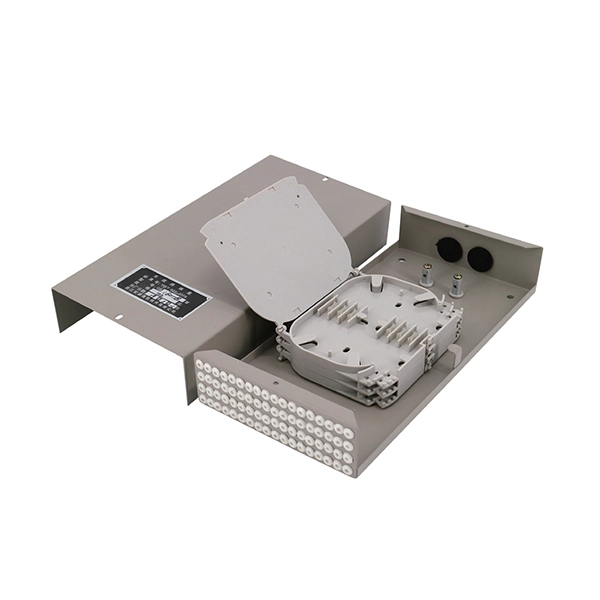

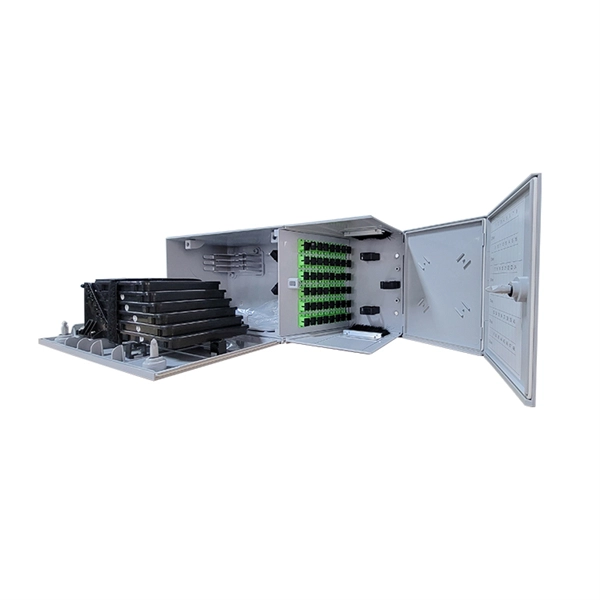

Fiber optic terminal boxes utilize advanced optical management technologies including fusion splicing, adapter panels, bend-radius control, and modular enclosures to ensure reliable signal termination and distribution.Core Functions and TechnologyFiber optic terminal boxes serve as the interface between feeder fibers and subscriber drop cables in FTTH networks, providing a secure and organized point for fiber termination, splicing, and distribution . They integrate several key technologies:Fusion Splicing: Terminal boxes often include fusion splice trays, which permanently join fiber ends with minimal insertion loss (≈0.05–0.1 dB) and high return loss, ensuring long-term signal stability .Adapter Panels and Connectors: Standardized adapters such as SC/APC, LC, FC, or ST are used to connect patch cords or drop cables. SC/APC connectors are preferred in FTTH to minimize back-reflection (RL ≥ 60 dB), .Bend-Radius Control: Internal routing maintains a minimum bend radius (≥30 mm for G.657.A2/B3 fibers) to prevent microbends and signal attenuation .Slack Storage and Fiber Management: Organized trays store excess fiber safely, allowing for future re-termination or connector replacement without damaging the fiber .Strain Relief: Cable clamps and grommets transfer tensile loads from the fiber to the chassis, protecting fibers from crush, pull, or bend stress .Enclosure and Deployment TechnologyDurable Housing: Terminal boxes are made from ABS, PC, or metal materials, providing mechanical strength and environmental protection for indoor or outdoor deployments .Modular Design: Many boxes feature removable splice cassettes and adapter plates, enabling easy maintenance, upgrades, and fast MAC (move/add/change) operations .High-Density and Rack-Mount Options: For larger networks, rack-mounted or high-density boxes allow multiple terminations in a compact footprint, often with dual-layer splice cassettes and integrated cable management .Integration with Network ComponentsFiber optic terminal boxes are designed to interface with ONTs/ONUs, optical switches, and distribution networks, supporting high-speed data, voice, and video services . Some models also accommodate PLC splitters, enabling signal division directly within the box, reducing the need for additional distribution enclosures .SummaryThe technology in fiber optic terminal boxes combines mechanical protection, optical splicing, connector management, and modular design to ensure reliable, low-loss, and maintainable fiber connections. These features make them essential for efficient FTTH deployment, protecting fibers while facilitating testing, troubleshooting, and network expansion .
