Dual Fiber Optic Switch Connection

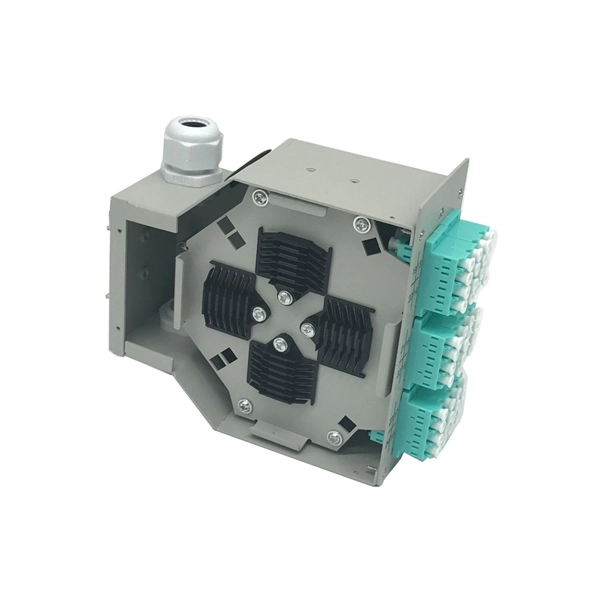

Dual fiber optic connections use two fibers—one for transmitting (TX) and one for receiving (RX)—to link switches, providing reliable, high-speed, and long-distance network communication.Overview of Dual Fiber ConnectionsDual fiber connections, also called duplex fiber links, use two separate fiber strands: one dedicated to transmitting data and the other to receiving data. This setup is common in Ethernet networks where switches are connected over longer distances or in environments with high electromagnetic interference, as fiber is immune to EMI and supports high bandwidths .Equipment NeededFiber Optic Switches or Media Converters: Ensure both switches support fiber ports. If connecting copper-based switches, use fiber media converters to bridge Ethernet to fiber .Duplex Fiber Optic Cables: Typically LC-LC or SC-SC connectors are used. Each cable has two fibers, one for TX and one for RX .Transceivers (SFP Modules): Match the mode (single-mode or multi-mode), wavelength (e.g., 850 nm for MM, 1310/1550 nm for SM), and speed (1G, 10G) on both ends .Connection StepsInsert SFP Modules: Install compatible SFP modules into the fiber ports of both switches.Connect Duplex Cable: Cross-connect the fibers: the TX port on Switch A goes to the RX port on Switch B, and vice versa .Verify Link: Check the link lights on both switches to ensure the connection is active.Configure Switch Settings (Optional): Some switches may require enabling the fiber port or setting the correct duplex and speed modes .Best PracticesMatch Fiber Type and Wavelength: Both ends must use the same fiber type (single-mode or multi-mode) and compatible wavelengths to avoid signal loss .Use Pre-Terminated Cables: Pre-terminated duplex cables save installation time and reduce errors .Limit Cascading Layers: When connecting multiple switches, avoid cascading more than four layers to maintain performance .Clean Connectors: Always clean fiber connectors before insertion to prevent signal degradation.Advantages of Dual FiberHigh Bandwidth: Supports gigabit and 10-gigabit speeds.Long Distance: Single-mode fiber can reach tens of kilometers.EMI Immunity: Ideal for industrial or high-interference environments.Simplicity: Easier to troubleshoot than single-fiber WDM setups . By following these guidelines, dual fiber optic connections provide a robust and scalable solution for linking switches in enterprise, campus, or industrial networks .
