Indoor Spectrum Splitter Attenuation

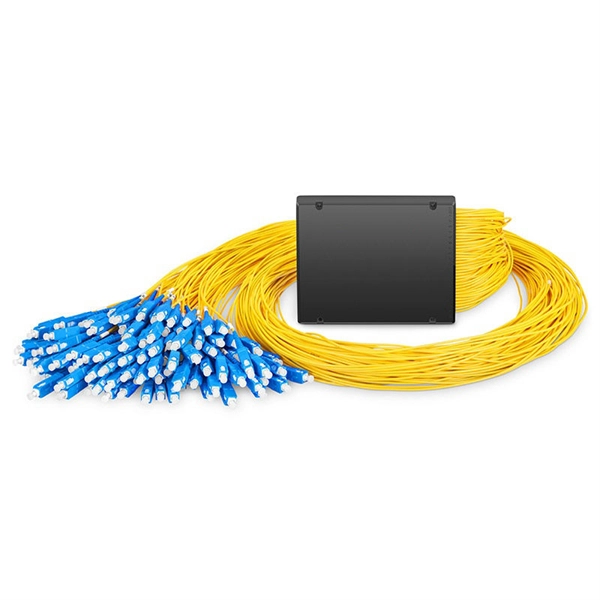

Indoor optical splitters introduce attenuation that depends on splitter type, number of outputs, and wavelength, typically ranging from 3 dB for a 1:2 split to over 20 dB for higher-order splits.Overview of Splitter AttenuationOptical splitters are devices that divide a single optical signal into multiple outputs. Attenuation, or insertion loss, occurs because some of the signal energy is inevitably lost during splitting due to reflection, absorption, and scattering within the splitter material or at connections . The amount of attenuation depends on:Splitter type: Fused Biconical Taper (FBT) splitters are inexpensive and easy to produce but have higher insertion loss and temperature sensitivity. Planar Lightwave Circuit (PLC) splitters offer better wavelength uniformity and lower loss, especially for high split ratios .Number of outputs: The more outputs a splitter has, the higher the attenuation per output. For example, a 1:2 splitter typically has ~3.5 dB loss, while a 1:32 splitter can exceed 17 dB .Wavelength and spectral range: Some splitters are optimized for specific wavelength ranges (e.g., 1260–1650 nm for PLC splitters). Broadband splitters may introduce slight spectral-dependent attenuation, which can affect systems sensitive to wavelength variations .Typical Attenuation ValuesIndoor splitters used in Passive Optical Networks (PON) or laboratory setups generally exhibit the following approximate insertion losses:1:2 split: 3–4 dB1:4 split: 6–7 dB1:8 split: 9–10 dB1:16 split: 13–14 dB1:32 split: 17–18 dB These values include the intrinsic splitter loss but do not account for additional connector or splice losses, which can add 0.2–0.5 dB per connection .Factors Affecting Indoor Splitter PerformanceTemperature: FBT splitters are more sensitive to temperature changes, which can slightly alter attenuation. PLC splitters are more stable over a wider temperature range .Polarization: Polarizing beam splitters can introduce different attenuation for different polarization states, which may be relevant in precision optical experiments .Power handling: High-power applications may require specialized variable beam splitters or attenuators to maintain signal integrity without damage .Practical ConsiderationsWhen designing indoor optical systems:Choose PLC splitters for high split ratios or when uniform wavelength performance is critical.Account for cumulative losses from multiple splitters and connectors to ensure sufficient signal strength at each output.For broadband or high-power applications, consider variable beam splitters/attenuators to fine-tune the output without introducing spectral distortion . Understanding these factors ensures reliable indoor optical network performance and accurate signal distribution across multiple outputs.
