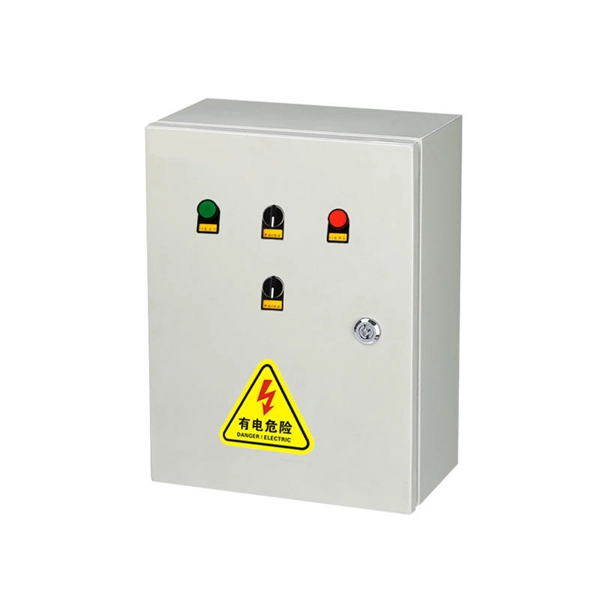

Photovoltaic distribution box keeps tripping

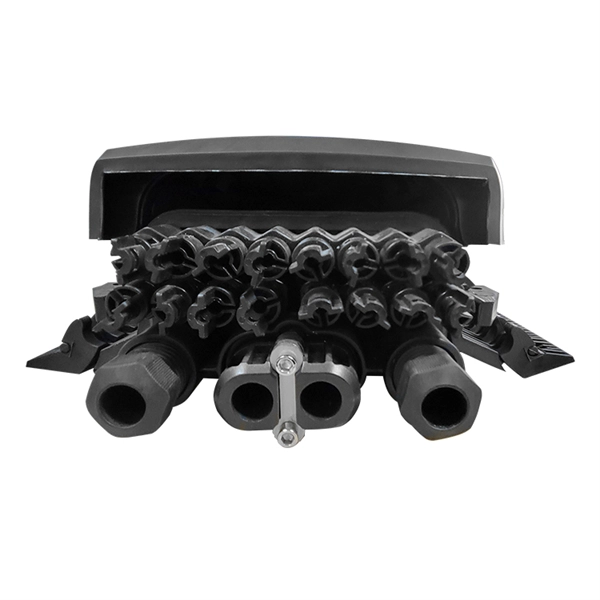

Frequent tripping of a PV distribution box usually indicates an underlying fault such as overload, insulation issues, wiring problems, or environmental factors, and should be diagnosed carefully to prevent damage or safety hazards.Common Causes1. Overload: If the total current drawn by the PV system exceeds the rated capacity of the breaker, it will trip to prevent damage. This can occur when multiple inverters or high-power devices operate simultaneously, or if the breaker is undersized for the system's peak output . 2. Low Insulation Resistance or Leakage Current: A PV system may develop leakage currents due to moisture, damaged insulation, or faulty components. Residual current devices (RCDs) or leakage protectors detect these currents and trip the breaker to prevent electric shock . 3. Wiring and Connection Issues: Loose or poorly connected wires, especially at junction boxes or breaker terminals, can create high resistance, heat, and intermittent tripping. Water ingress in rooftop junction boxes can also cause shorts or leakage . 4. AC Breaker Configuration or Quality: Incorrectly rated AC breakers, poor-quality breakers, or high ambient temperatures can reduce the breaker's carrying capacity, causing frequent trips. Heat buildup from poor contact or enclosed installation environments can exacerbate this . 5. Harmonics or Grid Interference: Some inverters may trigger trips when grid voltage fluctuations or harmonic distortion occur, particularly at full system capacity .Troubleshooting StepsCheck Load and Breaker Rating: Ensure the breaker is correctly rated for the PV system's maximum current. Consider upgrading if the system consistently approaches the breaker's limit .Inspect Wiring and Connections: Verify that all hot, neutral, and ground wires are securely fastened. Inspect junction boxes for moisture, corrosion, or damaged wire cones .Measure Insulation Resistance: Use a megohmmeter to check DC cables and module insulation. Low resistance indicates leakage that may require repair or replacement .Monitor System Performance: Use a data logger to record current and voltage during peak production. Identify if trips correlate with specific inverters or times of day .Check Breaker Condition: If the breaker shows signs of overheating, burning smell, or physical damage, replace it with a high-quality breaker of appropriate rating .Environmental Considerations: Ensure the breaker and panelboard are not exposed to excessive heat or poor ventilation, which can reduce current-carrying capacity .Preventive MeasuresInstall breakers and wiring according to standards (e.g., AS3008 for cable sizing).Maintain proper ventilation around the distribution box.Regularly inspect junction boxes and connections for moisture or corrosion.Use high-quality breakers and components rated for the system's peak load.Implement continuous monitoring to detect early signs of faults. By systematically checking these factors, you can identify the root cause of frequent tripping and implement corrective measures to ensure safe and reliable PV system operation.
